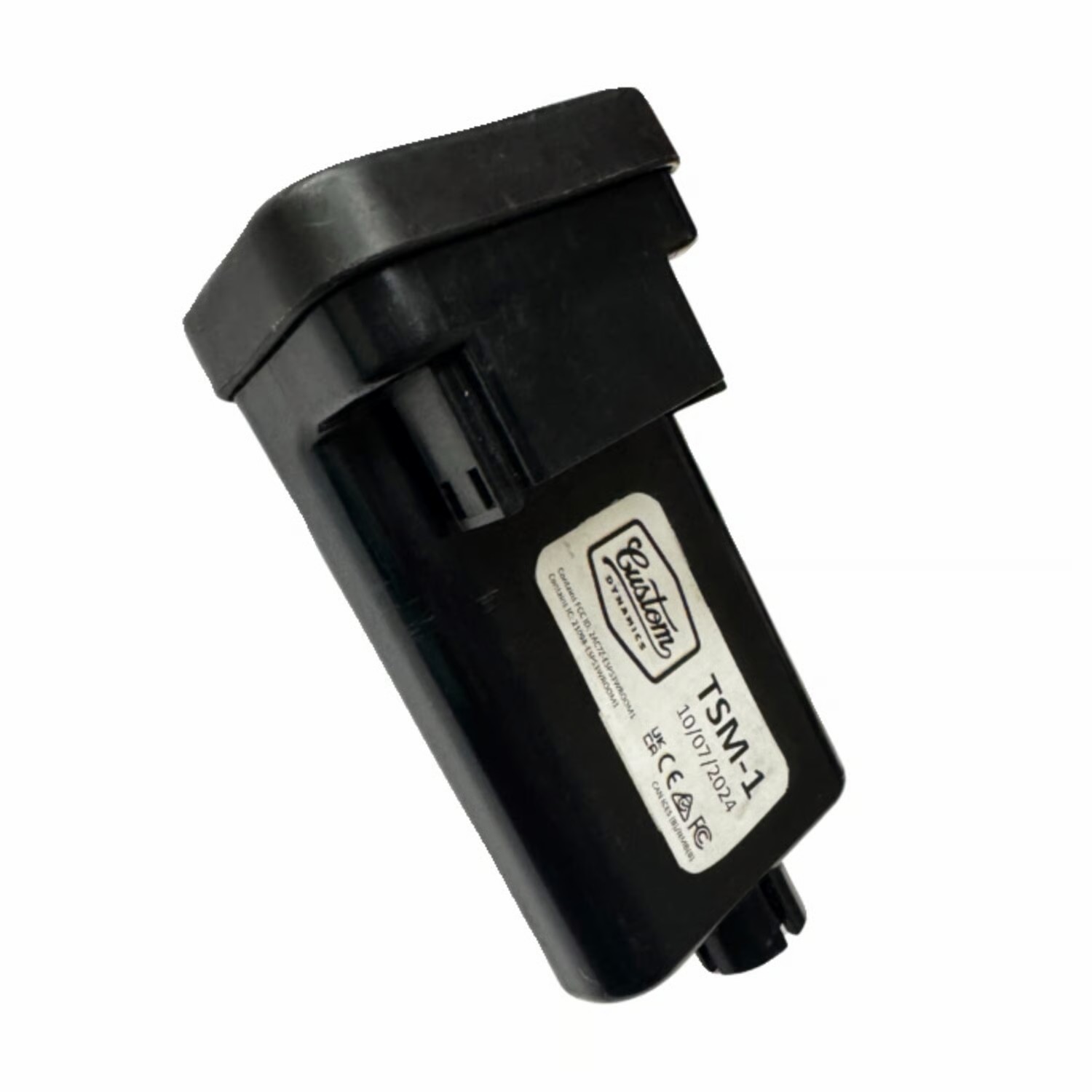

Custom Dynamics, Smart turn signal module TSM-1

Custom Dynamics, Smart turn signal module TSM-1

This will replace OEM TSM (Turn Signal Module) 68920-01, TSSM (Turn Signal Security Module) 68922-00 (for US models) or TSSM 68924-00 (for HDI/EU models).

It will not replace the TSSM factory alarm features.

Note:
The replacement of the OEM TSSM factory alarm module 68922-00 & TSSM 68924-00 for models with EFI require the use of a TechnoResearch diagnostic tool to complete the TSSM module replacement procedure.
For some models a manual procedure to marry the module to the bike is possible, for all others the TechnoResearch diagnostic tool is required for TSSM module replacement.
Installation instructions are included.

Direct Plug-and-play replacement for the OEM Harley-Davidson turn signal modules

Functionality: Operates solely as a TSM (Turn Signal Module) without and will not support functions/security features of the TSSM (Turn Signal Security Module)

Lighting Compatibility: Works with both LED and incandescent bulbs

Turn Signal Load Range: Supports 0.24A to 6A per side

No Load Equalizer Required: Compatible with BCM-compliant LED upgrades

Programming Compatibility: Follows OEM TSM manual password learning and supports TechnoResearch module replacement procedure

Turn Signal Functions: Manual and self-canceling based on speed, time, and direction

Four-Way Hazard Operation: Smart cancellation based on timing, ignition position, and battery voltage

Safety Feature: Auto shut-off when tilt exceeds 45° for more than 1 second

Protection: Built-in short circuit and overcurrent protection on turn signal circuits

Power Efficiency: Designed for low current consumption

Voltage Range: Operates between 11VDC and 15VDC

Build Quality: Robust, high-quality components

Includes installation instructions.

Note: If you want to replace the seal for the stock H-D turn signal module connector, it is available as 709107.
